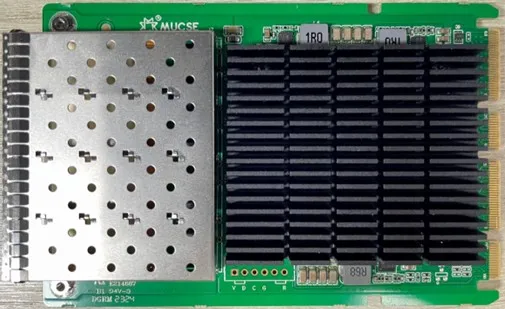

HZ10N10F4OCP 10 Gigabit Four-Port Ethernet OCP Network Card with PCIe 3.0 x8 and Domestic N100 Chip for Server Use

Name: HZ10N10F4OCP 10 Gigabit FourPort Ethernet OCP Network Card with PCIe 30 x8 and Domestic N100 Chip for Server Use
Brand: HengzhengTC
Price: 185 USD

Brand Name : HengzhengTC

Model Number : HZ10N10F4OCP

Place of Origin : Beijing, China

MOQ : 1 piece

Price : $185-300 / piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

transmission rate : 10G

interface type : OCP

Transmission Rate : 40G/10G

Interface Type : 4 10G SFP+ connectors

Network port : Four ports

Warranty : 3 years

Contact Now

Product Description

controller	Domestic N100 Gigabit Intelligent Network Controller
transmission medium	optical fibre
form	OCP3.0 SFF
Optical fiber type	10GBASE-SR,10GBASE-LR,10GBASE-Cu 1GBASE-SR,1GBASE-LR,1GBASE-Cu
Power consumption (Max)	8W
Port type	4 10G SFP+ connectors
portrate	1/10Gbps
PCIe bus	PCIE3.0 x8
NCSI	support
Power supply	PCIe power supply
dissipate heat	Passive heat dissipation
Working temperature	0ºC~ 70ºC
Working humidity	10%~90%No condensation
Storage temperature	-40ºC~85ºC
Storage humidity	5%~95%No condensation
meet a criterion	IEEE 802.3z Gigabit Ethernet IEEE 802.3x Full Duplex and flow control IEEE 802.1Q VLAN IEEE 802.3ad IEEE 802.3az - Energy Efficient Ethernet (EEE) IEEE 802.1P IEEE 802.3ac IEEE 802.2
Network characteristics	Support RSS with a maximum of 256 queues. Support packet unloading, IP/TCP and IP/UDP checksum unloading; TSO/GRO/TCO/RCO support. Support packet filtering, and support packet filtering based on MAC/VLAN/TCP_SYN and quintuple. Support packet redirection, support packet redirection based on MAC/VLAN/TCP_SYN and quintuple. Support flow control mechanism and FC/PFC. Support PTP, support IEEE1588v2, and support data packet uploading with timestamp. Support encryption protection of data stream, and support secure transmission protocols such as IPSec and MACSec. Support virtual Ethernet bridge (VEB) Support VxLAN/NVRGE Support PXE Support sideband management Support QoS, and support the control of data flow according to the queue mechanism. Support jumbo frames with a maximum size of 9564 bytes, and capture 100% of all frames (including jumbo frames) from 64 to 9564 bytes. Support VLAN, support QinQ Support IPV4/IPV6. Support on-chip TCAM (support 8192 quintuple (SIP/DIP/SPORT/DPORT/PROTO) searches, with 4096 entries for each 40G port).

HZ10N10F4OCP

HZ10N10F4OCP is a four-port 10Gigabit optical fiber network adapter with PCI Express 3.0 x8 bus interface and OCP3.0 standard, which is developed on the basis of domestic N10 chip scheme. N10 is a network controller chip with reconfigurable processor technology, high security and high cost performance. It has completely independent intellectual property rights and supports dual-port 40G, 2/4/8-port 10G interface and 8-port 1G network applications. This chip is mainly used in many network applications such as servers, network security devices, embedded systems, etc. Its functions are as follows:
(1) realize the function of 40G/10G domestic universal network card chip;
(2) With 40G password acceleration capability, the function of security controllable network card can be realized;
(3) It has programmable ability to realize intelligent unloading of user network protocols.
Among them, HZ10N10F4OCP adopts domestic N10G-X4 chip, supports different access rates of 10G and 1G, and has fully integrated 10Gigabit Ethernet media access control (MAC) module and physical layer (PHY) module. Support IP/TCP, IP/UDP checksum unloading, as well as data packet filtering and redirection of ACVLANTCP_SYN, and support FC and PFC at the same time in data traffic support.
