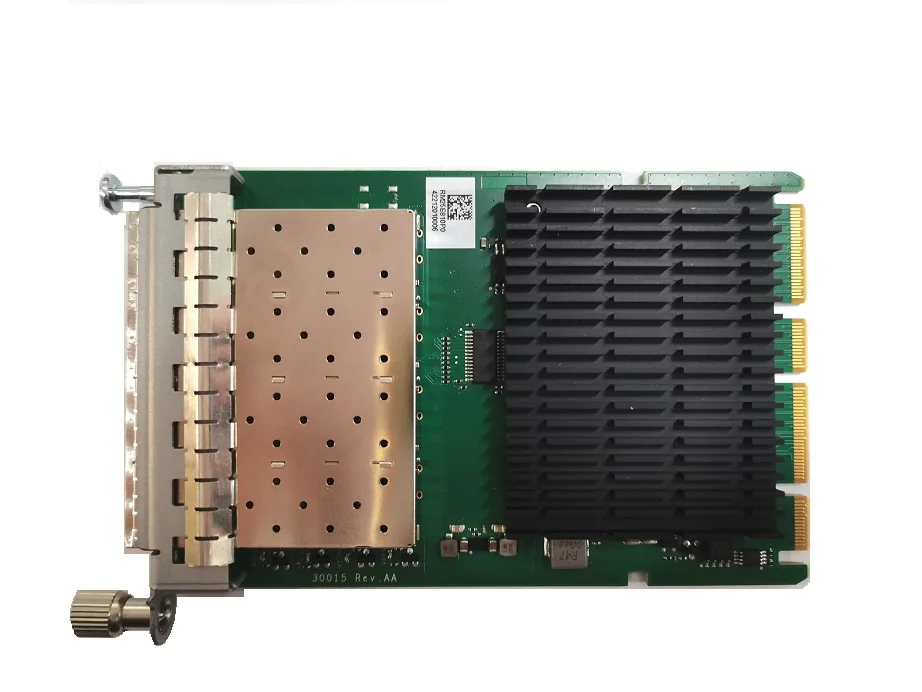

HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8

Name: HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen40X8
Brand: HengzhengTC
Price: 380 USD

HZ25E810F4OCP 25G Four Port OCP Network Card With SFP28 Interface And PCIe Gen4.0X8 Manufactures

Brand Name : HengzhengTC

Model Number : HZ25E810F4OCP

Place of Origin : Beijing, China

MOQ : 1 piece

Price : $380-500 / piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

transmission rate : 25Gbps,10Gbps,1Gbps

interface type : OCP

private mold : No

Interface Type : 4*SFP28

Network port : Four ports

Warranty : 3 years

Contact Now

Product Description

product model			HZ25E810F4OCP
Control chip			Intel E810-CAM2/E810-CAM1 Ethernet controller
edition			OCP add-in card
Bus type			OCP 4.0 x16
Network cable interface type			SFP28,SFP+,SFP
Network port transmission rate			25Gbps,10Gbps,1Gbps
I/O Port			4*SFP28
Bus rate			OCPv4.0 16 GT/sec
connector			OCP x16 golden finger
input voltage			Voltage: 3.3V_AUX,12V,3.3V
Network standard			IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
LED			Link up LED:25G: green other SPEED: amber Connectionless light goes out. Activity LED: green (the light goes out when there is no data, and flashes when there is data)
Operating system support			Ubuntu,CentOS,Kylin,NeoKylin,Tongxin UOS,Windows,Windows Server,Linux,Vmware ESX/ESXI
Other technical parameters			Adapted cpu:intel,AMD, Kunpeng, etc. Interface adaptation medium: optical and electrical module 10GBASE-SR/LR 10GbE DAC 25GBASE-SR/LR 25GBASE-CR
Functional characteristics			RDMA:RoCEv2,iWARP IEEE 1588 PTP Dynamic device configuration (DDP) ACLs: 8K Virtual Machine Device Queue (VMDq), Virtualization: 256VF Intelligent unloading, tunnel unloading Ethernet storage: iSCSI On-chip QoS and traffic management: QoS via 802.1p PCP Management interfaces: SMBus,MCTP over PCIe AND SMBus. Passive cooling/active cooling can be selected. PCIe power supply, no need for external power supply.
PCB physical data	Length and width	115*76mm
	support	82.5mm*15.2mm
Working temperature			0°C to 50°C
Working humidity			0%-85%, non-condensing
storage temperature			-10°C to 60°C
Lead free process			RoHS-R6

HZ25E810F4OCP

HengzhengTC brand HZ25E810F4OCP network card is a 25G four-port OCP3.0 network card based on Intel E810 master control scheme. It has four 1/10/25G adaptive SFP28 interfaces, which can support 25Gbps transmission bandwidth and OCP 3.0 system interface, ensuring the efficient and stable work of the network card. The network card also supports MSI,MSI-X, VMDq queue, QOS policy, flow control and other functions.
