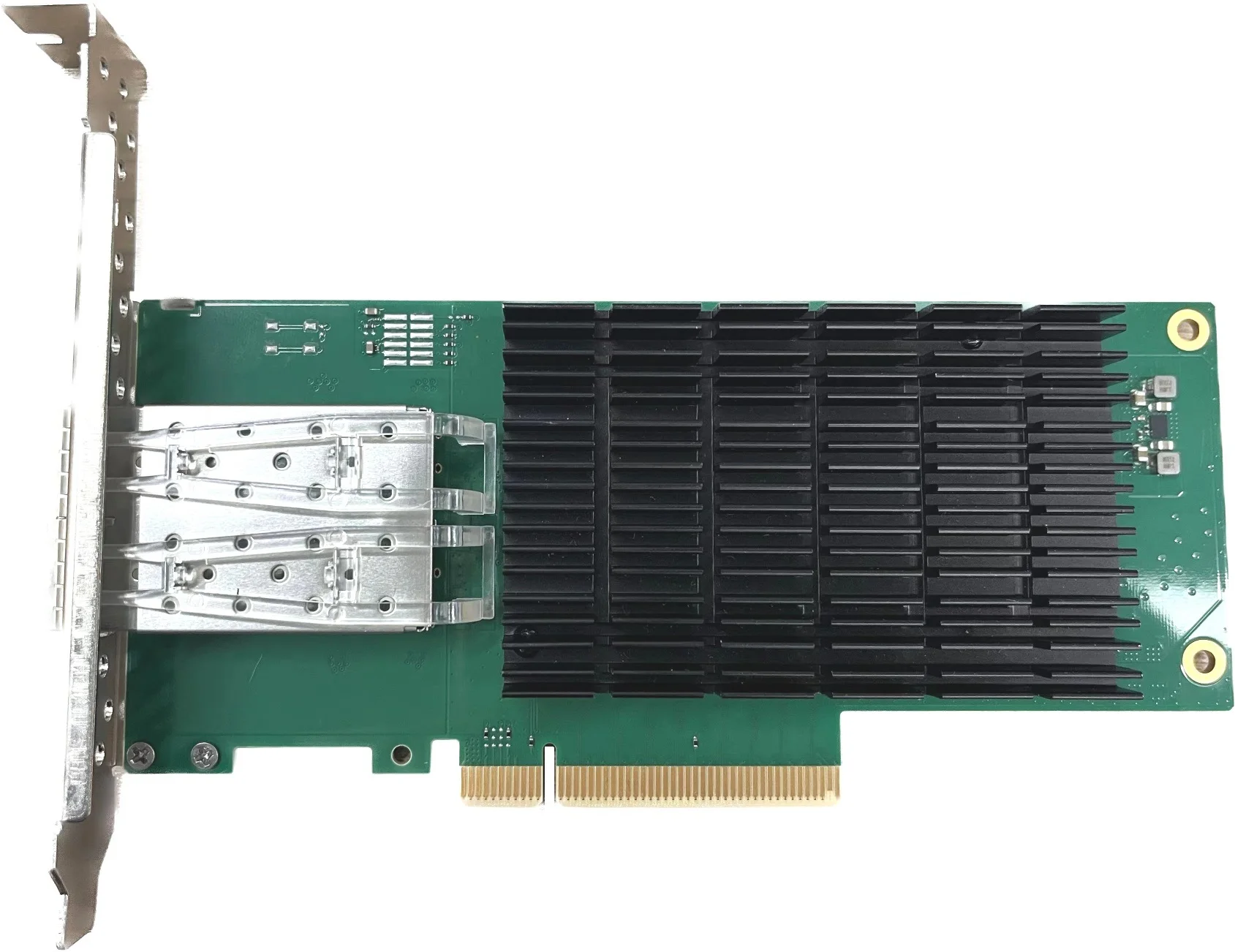

25G Intel E810 Chip Dual SFP28 PCIe Gen4.0X8 10Gbps Low Latency Ethernet Network Adapter PCI

Name: 25G Intel E810 Chip Dual SFP28 PCIe Gen40X8 10Gbps Low Latency Ethernet Network Adapter PCI
Brand: HengzhengTC
Price: 600 USD

Brand Name : HengzhengTC

Model Number : HZ25E810F2

Place of Origin : Beijing, China

MOQ : 1 piece

Price : $600-1100 / piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

transmission rate : 25Gbps

Network port : Two ports

interface type : PCIe

Interface Type : 2*SFP28

Transmission Rate : 25Gbps,10Gbps,1Gbps

Warranty : 3 years

Contact Now

Products Description

product model			HZ25E810F2
Control chip			Intel E810-XXVAM2 Ethernet controller
edition			PCIE add-in card
Bus type			PCIe 4.0 x8
Network cable interface type			SFP28,SFP+,SFP
Network port transmission rate			25Gbps,10Gbps,1Gbps
I/O Port			2*SFP28
Bus rate			PCIE v4.0 8 GT/sec
connector			OCP x8 golden finger
input voltage			Voltage: 3.3V_AUX,12V,3.3V
Network standard			IEEE 802.1p, IEEE 802.1Q, IEEE 802.2, IEEE 802.3az, IEEE 802.3x, IEEE 802.3z
LED			Link up LED:25G: green other SPEED: amber Connectionless light goes out. Activity LED: green (the light goes out when there is no data, and flashes when there is data)
Operating system support			Windows, Windows Server, Linux, Vmware ESX/ESXi, Ubuntu, CentOS,Kylin,NeoKylin, Tongxin UOS, etc
Other technical parameters			Adapted cpu: Shenwei, Feiteng, Kunpeng, Haiguang, Megacore, Godson, Intel,AMD, etc. Interface adaptation medium: optical and electrical module 10GBASE-SR 10GBASE-LR 10GBASE-ER 10GbE DAC
Functional characteristics			RDMA:RoCEv2,iWARP IEEE 1588 PTP Dynamic device configuration (DDP) ACLs: 8K Virtual Machine Device Queue (VMDq), Virtualization: 256VF Intelligent unloading, tunnel unloading Ethernet storage: iSCSI On-chip QoS and traffic management: QoS via 802.1p PCP Management interfaces: SMBus, MCTP over PCIe AND SMBus. Passive cooling/active cooling can be selected. PCIe power supply, no need for external power supply.

Product details

25G Intel E810 Chip Dual SFP28 PCIe Gen4.0X8 10Gbps Low Latency Ethernet Network Adapter PCI

HZ25E810F2

HengzhengTC brand HZ25E810F2 network card is a 25G four-port OCP3.0 network card developed on the basis of Intel E810 master control scheme. It has four 1/10/25G adaptive SFP28 interfaces, which can support 25Gbps transmission bandwidth and OCP 3.0 system interface, ensuring the efficient and stable work of the network card. The network card also supports MSI,MSI-X, VMDq queue, QOS policy, flow control and other functions.

model	description
HZTS25SR	25G SFP28 SR,Dual LC,850nm VCSEL,100m
HZTS25LR	25G SFP28 LR,Dual LC,1310nm DFB,10km
HZAS25A5	25G SFP28 to SFP28 AOC 5M
HZDS25D3	25G SFP28 to SFP28,30AWG,3M
HZ-LC-LC-DX-5M3	LC双芯跳线(OM3),LC/UPC-LC/UPC-MM(OM3)-DX-2.0mm-5M
HZ-LC-SC-SM-3M	LC/UPC-SC/UPC-SM-DX-2.0mm-3M
