12Gb/S SAS Broadcom 9400-16E Fibre Channel Adapter With PCI Express 3.1X8

Name: 12GbS SAS Broadcom 940016E Fibre Channel Adapter With PCI Express 31X8
Brand: Broadcom
Price: 500 USD

12Gb/S SAS Broadcom 9400-16E Fibre Channel Adapter With PCI Express 3.1X8 Manufactures

Brand Name : Broadcom

Model Number : 9400-16E

Place of Origin : Beijing, China

MOQ : 1 pieces

Price : $500-800 / piece

Payment Terms : L/C,D/A,D/P,T/T,Western Union,MoneyGram

Packaging Details : box

transmission rate : 1000Mbps

interface type : PCI

Physical Dimensions : 6.127 inches * 2.712 inches

Host Bus Type : PCI Express 3.1 x8

I/O Processor/SAS Controller : SAS 3516 dual-core RAID(ROC) controller on chip

Key RAID Data Protection Features : Supported RAID levels: 0, 1, 5, 6, 10, 50, 60.

Data Transfer Rates : 12Gb/s(SAS/SAT)

Warranty : 3 years

Contact Now

9400-16E Tri-Mode Storage HBA

* Multi-mode Integration: Supports SAS-3/SATA/NVMe tri-mode for seamless integration of hybrid storage environments.
* Ultra-fast Transmission: 12Gb/s SAS and PCIe 3.1 x8 interfaces ensure efficient data transfer.
* Intelligent Optimization: Dual-core ROC controller with 4GB/8GB cache enhances I/O efficiency; CacheVault technology protects data during power outages.
* Flexible Adaptation: Low-profile design suits various scenarios, compatible with Windows/Linux/VMware systems.
* Quality Assurance: Certified for Intel platforms and enterprise HDDs, 3-year warranty, supports 1024 SAS/SATA + 24 NVMe devices, and offers full RAID 0/1/5/6/10/50/60 protection.

‌Model‌	9400-16E Tri-Mode Storage HBA
‌Physical Dimensions‌	Low-profile design: 6.127 in (L) × 2.712 in (W)
‌Host Bus Type‌	PCI Express 3.1 x8 lane interface
‌I/O Processor‌	SAS 3516 dual-core RAID-on-Chip (ROC) controller
‌Interface Protocol‌	Tri-Mode (SAS-3 12Gb/s + SATA 6Gb/s + NVMe over PCIe 3.1)
‌Connectors‌	4× Mini-SAS HD (SFF-8643) external ports
‌RAID Functionality‌	Supports RAID 0/1/5/6/10/50/60, CacheVault flash backup
‌Device Support‌	SAS/SATA devices: 1024; NVMe devices: 24
‌Cache Configuration‌	Standard 4GB DDR4 SDRAM (2133MHz), optional 8GB
‌Data Transfer Rate‌	SAS-3: 12Gb/s; PCIe 3.1: 16GT/s
‌Operating Environment‌	Temperature: 0°C–55°C; Humidity: 20%–80% non-condensing; Voltage: +12V±8%/3.3V±9%
‌Certifications & Compatibility‌	Windows Server/Linux/VMware; UEFI 2.3.1/Legacy boot; 3-year warranty
‌Typical Applications‌	High-density DAS, cloud platforms, external storage expansion
‌Installation Requirements‌	Must be installed in an ESD-safe environment; supports full/half-height bracket mounting
‌Firmware Management‌	Supports Broadcom MegaRAID Storage Manager for unified control
‌NVMe Features‌	Supports multi-namespace management and end-to-end data protection
‌Compatibility Validation‌	Certified for Intel server platforms; supports Exos/X18 enterprise HDDs

12Gb/S SAS Broadcom 9400-16E Fibre Channel Adapter With PCI Express 3.1X8

Packing & Delivery

Product Tags:

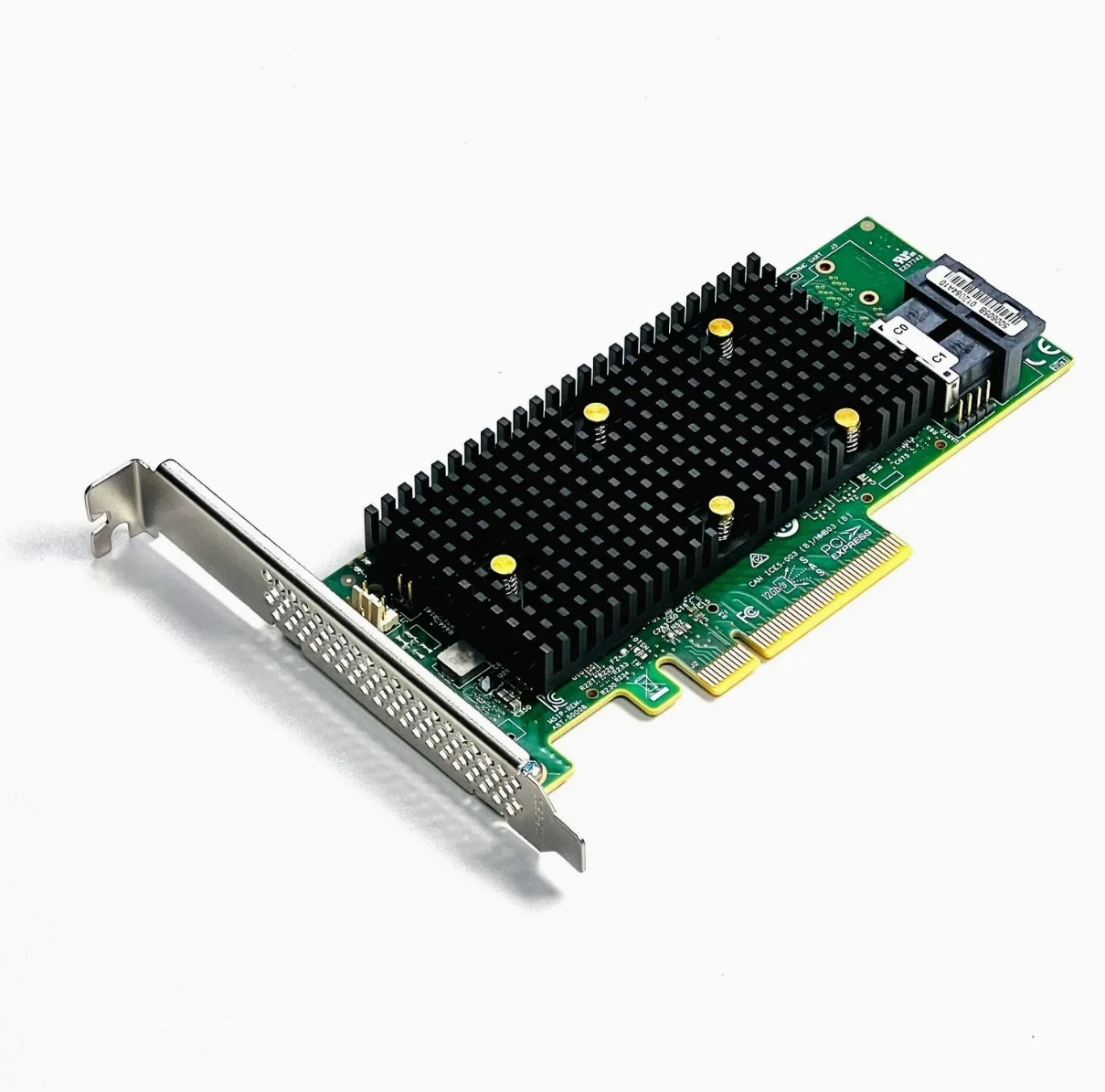

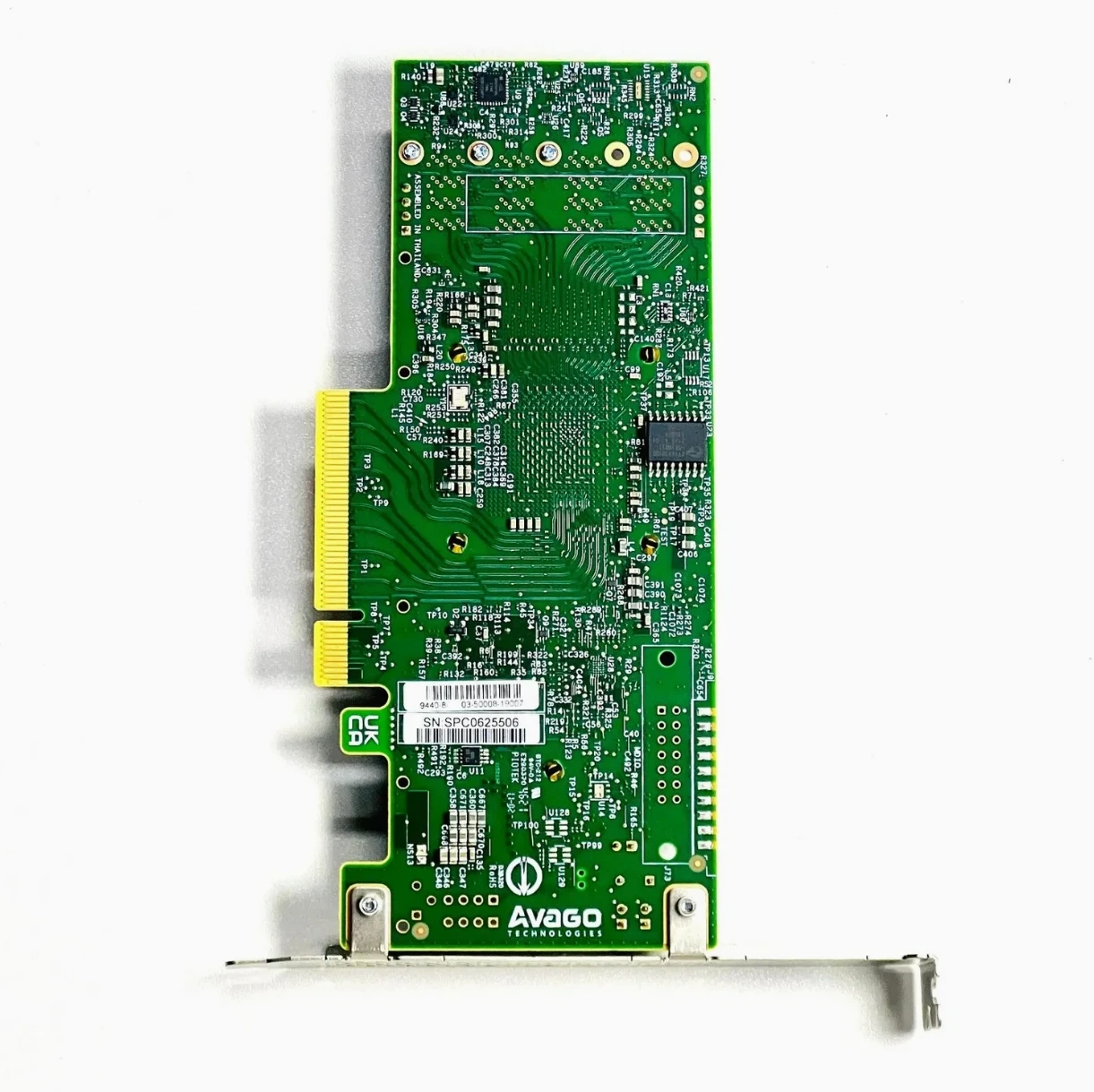

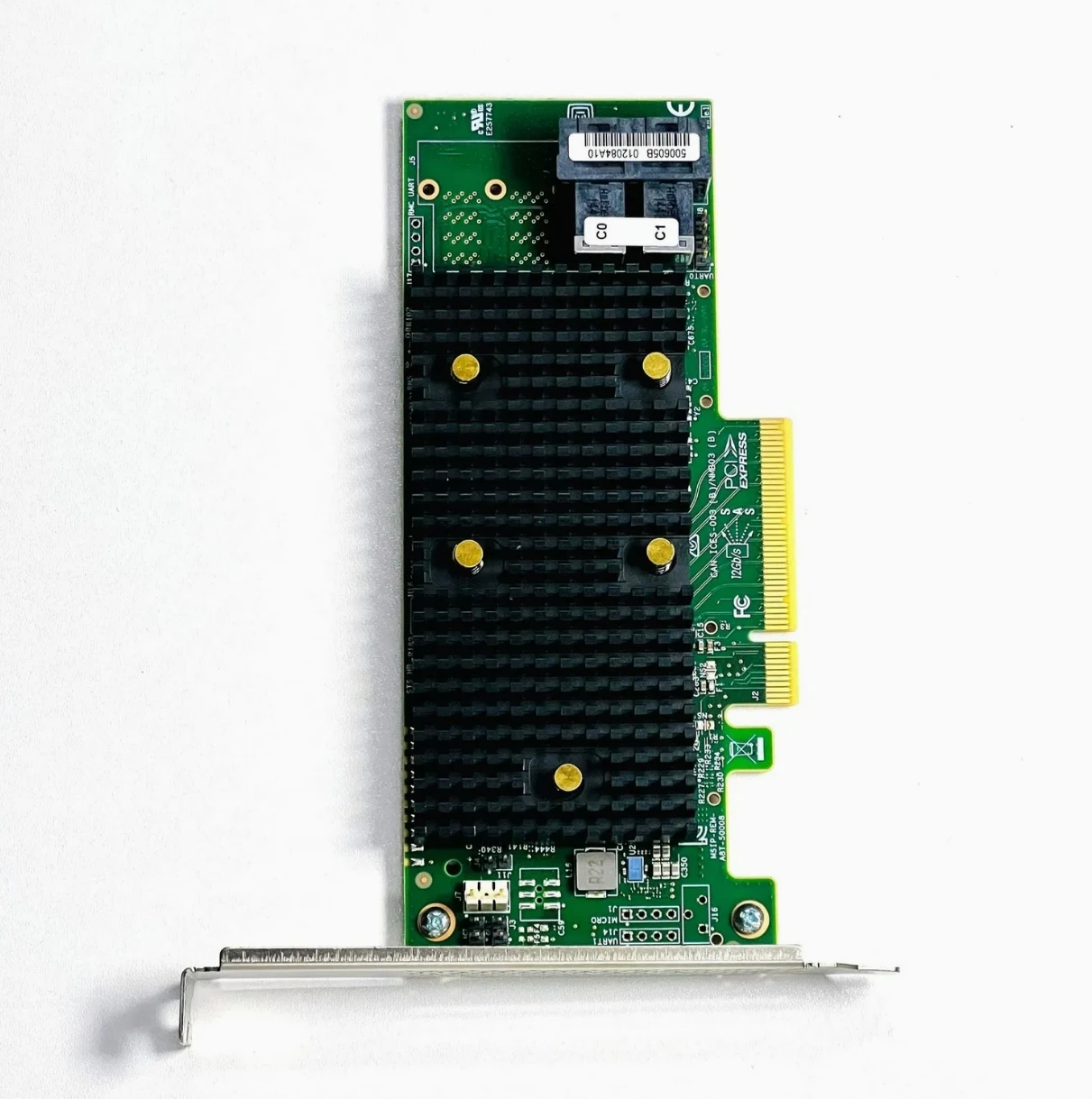

12Gb/S SAS Broadcom 9400-16E Fibre Channel Adapter With PCI Express 3.1X8 Images
