LSI 9400-16i 12Gb/S SAS RAID Controller 16 Port PCIe 3.0 For Enterprise Server Network Cards

  • 1
  • 2

Brand Name : BROADCOM

Model Number : 9460-16i

Place of Origin : Beijing, China

MOQ : 1 pieces

Price : $775 -817/ piece

Packaging Details : box

Payment Terms : L/C,D/A,D/P,T/T,MoneyGram,Western Union

interface type : PCI

Physical Dimensions : Compatible design of full/half-height bracket

Host Bus Type : PCI Express 3.1 * 8

Port : 16 inside

Key RAID Data Protection Features : Support RAID 0/1/5/6/10/50/60 level

I/O Processor/SAS Controller : SAS3516

Warranty : 3 years

Contact Now

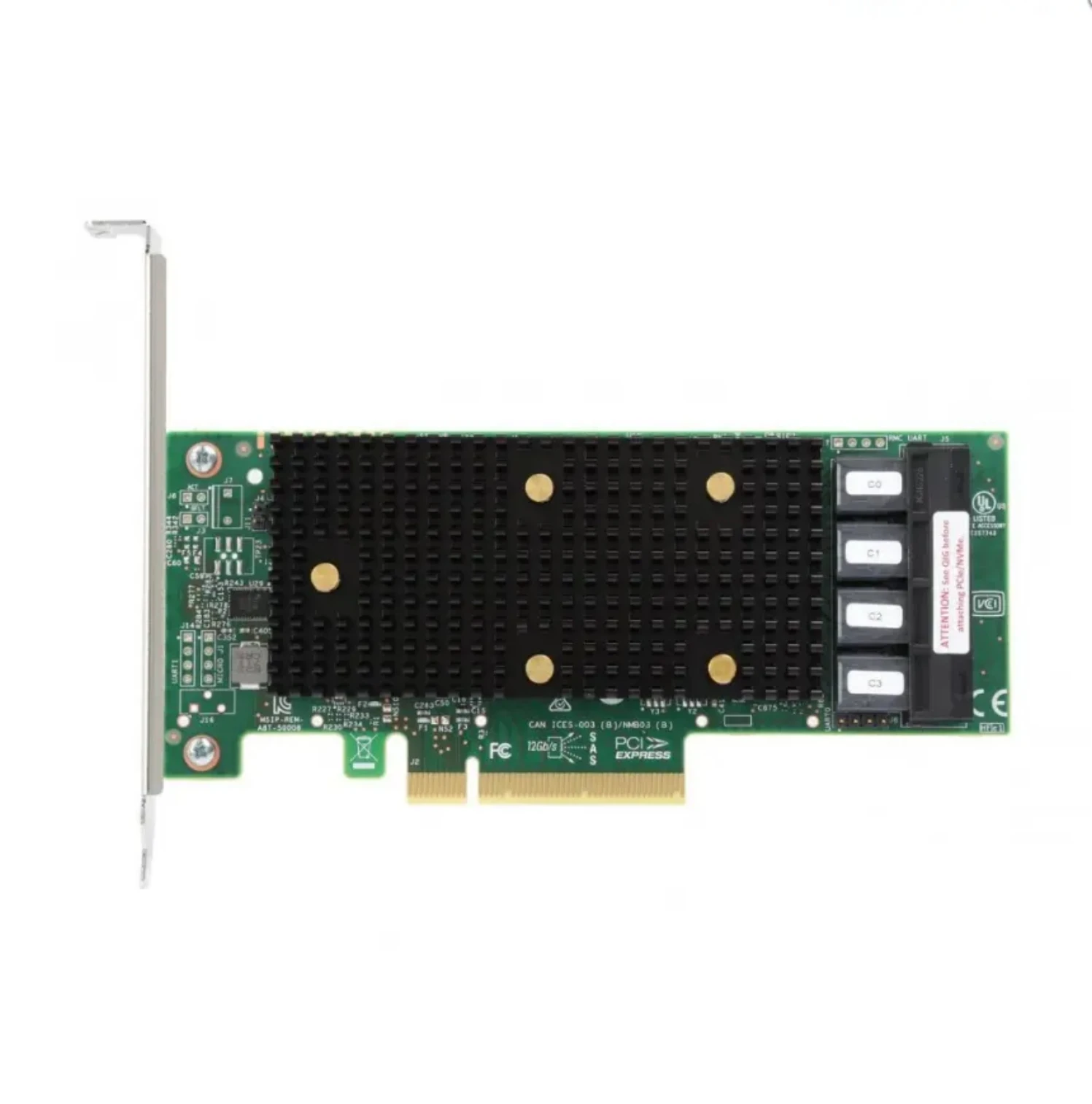

9400-16i RAID card
Broadcom/LSI 9400-16i is a high-performance enterprise RAID card, which adopts PCIe 3.1 x8 interface and SAS 3516 dual-core controller, supports 12Gb/s SAS-3 transmission rate, and can connect 1024 SAS/SATA devices or 24 NVMe devices. It provides 4GB/8GB DDR4 cache option, supports RAID 0/1/5/6/10/50/60 level, is equipped with CacheVault data protection technology, is compatible with mainstream operating systems and servers, and is suitable for enterprise environments requiring high reliability and large storage.
model
Broadcom MegaRAID 9400-16i / LSI 9460-16i
brand
Broadcom/LSI
physical parameter

measure
155.65mm × 68.9mm(Low profile design)
interface type
4个Mini-SAS HD(SFF-8643)Internal connector
performance parameter

Host bus type
PCI Express 3.1 x8 passage
Data transmission rate
12Gb/s SAS-3 standard
Maximum number of connected devices
SAS/SATA:1024; NVMe:24
Cache capacity
4GB DDR4(2133MHz) is standard, and 8GB is optional.
functional performance

RAID level support
RAID 0/1/5/6/10/50/60
Virtual disk support
Up to 64 Virtual Drive.
Hard disk group support
Up to 64 hard Drive Group, with a maximum of 240 hard disks in each group.
Cache protection technology
CacheVault CVPM -05
environmental requirement

Working temperature
0°C to 55°C
Working humidity
20%-80% Non-condensation
power consumption
11.95W
compatibility

Operating system support
Windows/Linux/VMware
Server compatibility
Support major mainstream servers
Management and maintenance

Administrative Tools
LSI storage administration (LSA), StorCLI command line tool, UEFI configuration interface.
