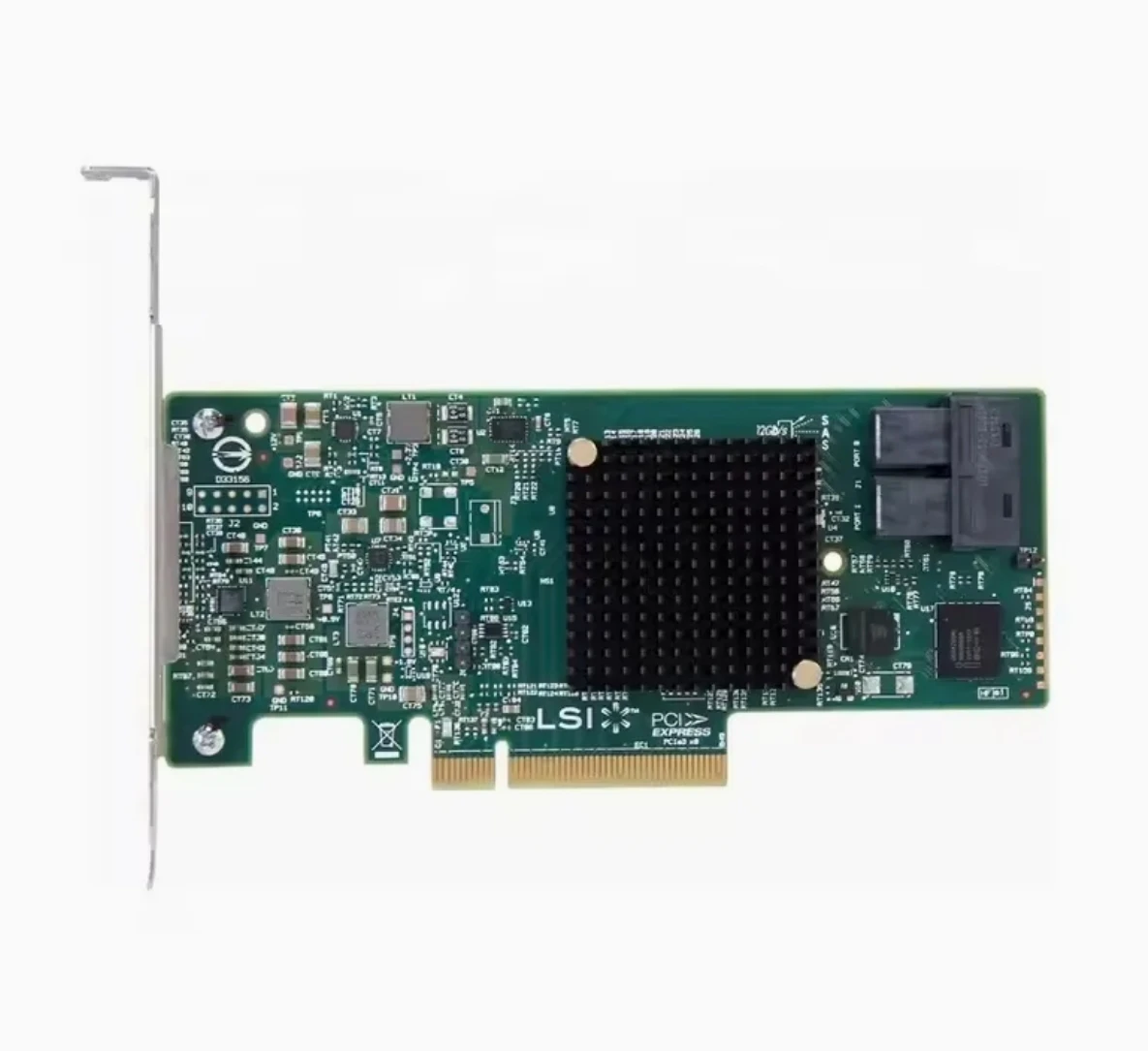

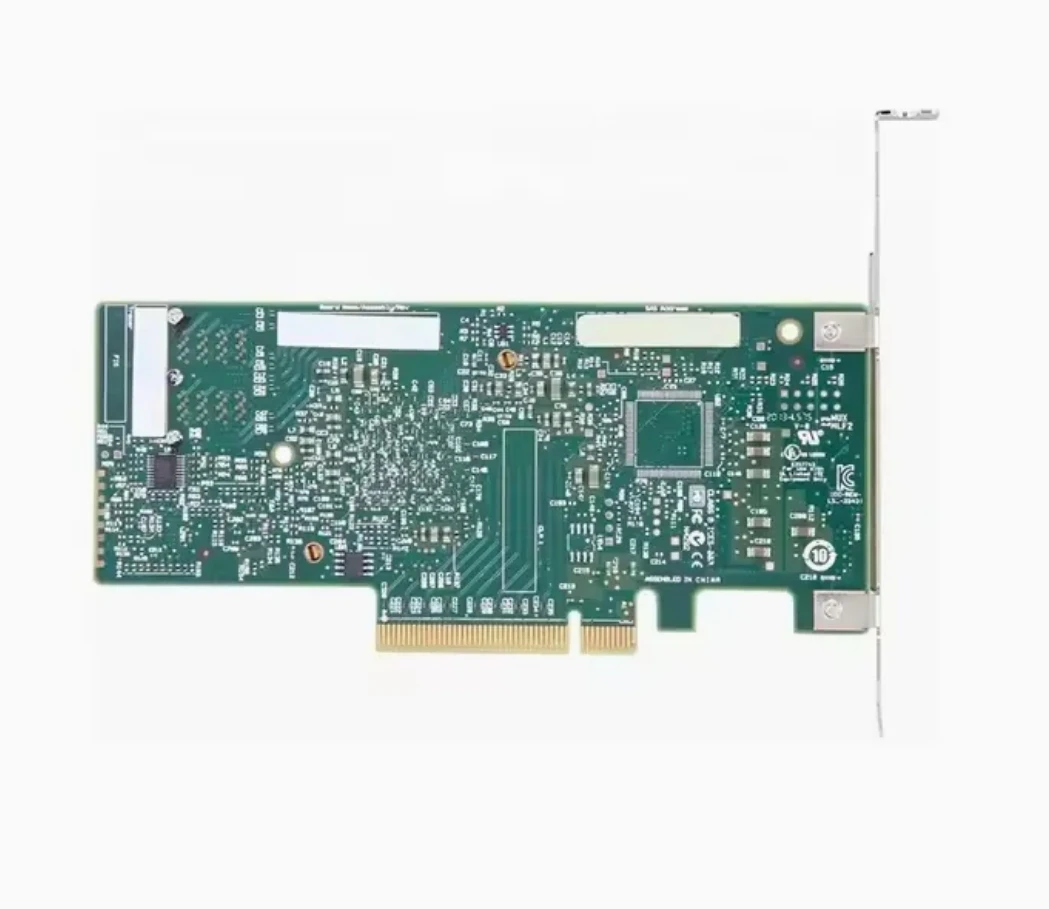

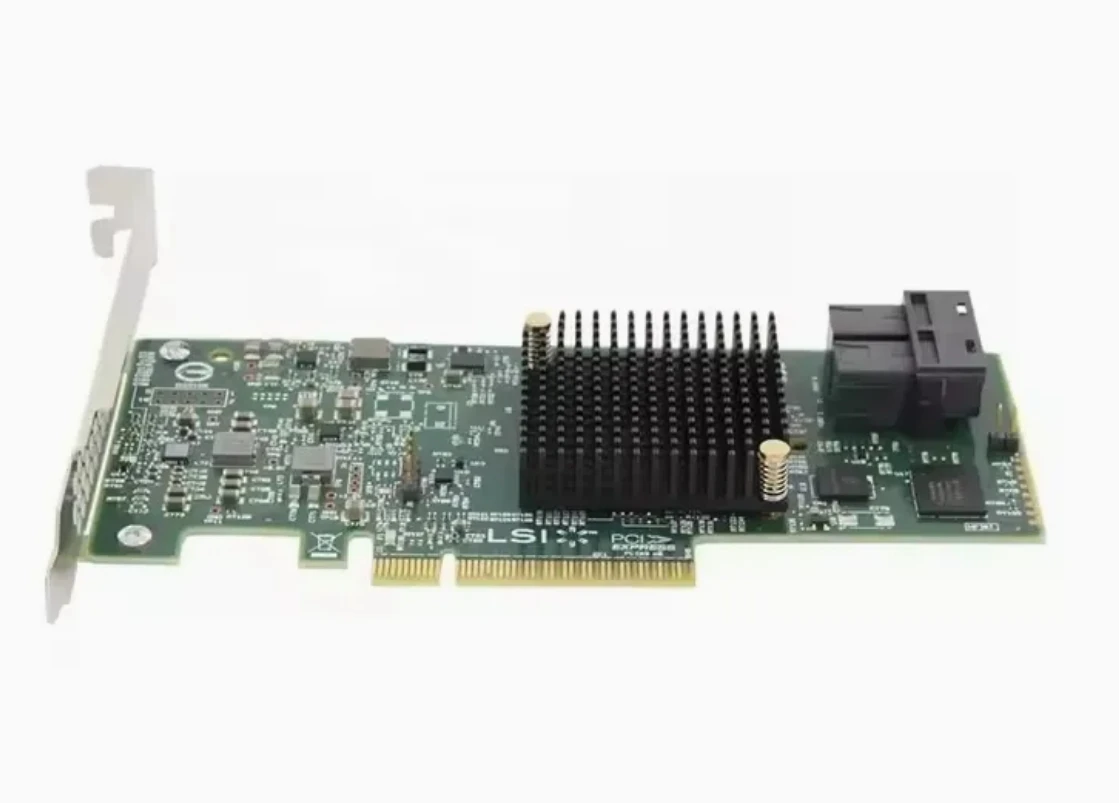

LSI 9300-8I 8 Port RAID Controller Cards Supporting 1024 SAS SATA Devices For Server Storage

Name: LSI 93008I 8 Port RAID Controller Cards Supporting 1024 SAS SATA Devices For Server Storage
Brand: Broadcom
Price: 200 USD

LSI 9300-8I 8 Port RAID Controller Cards Supporting 1024 SAS SATA Devices For Server Storage Manufactures

Brand Name : Broadcom

Model Number : 9300-8i

Place of Origin : Beijing, China

MOQ : 1 pieces

Price : $200-500 / piece

Packaging Details : BOX

transmission rate : 1000Mbps

interface type : PCI

Host Bus Type : PCI Express 3.0 x8

I/O Processor/SAS Controller : Using SAS3008 controller chip

Physical Dimensions : 2.6 inches * 6.0 inches

Warranty : 3 years

Contact Now

Broadcom 9300-8I

With its high-performance SAS3008 controller and PCIe 3.0 x8 interface, Broadcom 9300-8i RAID card provides high-speed data transmission rate of 12Gb/s, supports the expansion of up to 1024 SAS/SATA devices, has hardware RAID acceleration, multilevel data protection (such as CacheCade technology) and SED encryption management functions, is compatible with mainstream operating systems and server environments, and has become an enterprise-class storage deployment by combining low-power design and three-year warranty service.

model	9300-8I
Physical Characteristics	Low profile dimensions: 6.127×2.712 inches (2.6×6.0 cm), compatible with full - height/half - height baffles
Host Bus	PCI Express 3.0 x8 channel interface
I/O Processor	SAS3008 controller chip
RAID Function	Supports hardware RAID acceleration (needs to distinguish between HBA mode and RAID mode), cache protection optional
Device Support	Up to 1024 SAS/SATA devices (via expansion backplane)
Data Transfer Rate	12Gb/s per channel (SAS 3.0 standard), 2 SFF - 8643 interfaces providing 8 physical ports
High - Speed Cache	Cache module optional, supports LSI CacheCade technology (license required)
Operating System Certification	Windows Server/Linux/VMware ESXi/XenServer/FreeBSD, etc.
Environmental Parameters	Operating temperature 0°C - 55°C, humidity 20% - 80% non - condensing, MTBF > 5 million hours (at 40°C)
Power Consumption	Typical power consumption 5.96W
Management Tools	LSI Storage Authority/StorCLI command line/UEFI HII interface
International Certifications	Multiple safety certifications such as CE/FCC/RoHS/WEEE

LSI 9300-8I 8 Port RAID Controller Cards Supporting 1024 SAS SATA Devices For Server Storage

Packing & Delivery

FAQ

Q:Are you trading company or manufacturer?

A:We are manufacturer.

Q:How long is your delivery time?
A:Generally it is 2-5 days if the goods are in stock. or it is 10 days if the goods are not in stock, it is according to quantity.

Q:Can you offer a better price?Any discount?
A:Yes we can give you discount.But it is based on quantity.More quantity more attactive price.

Q:What is your warranty period?
A:1.Different products have different warranties.
2.comprehensive after-sales service, including quality service, guidance services,We focus on customer needs in every
detail.Please contact us if you need our detail warranty term.

Q:What's the package?
A:Original packing. For the outside, we will pack it in an empty box to protect from damaged during transportation, and ensure youwill receive the goods in good condition.
